Animations

Please see the photo section texts for full explanation.

Final model with texture

36 Textures

My sketch up model

Hello everyone, welcome to Max's google sketch up model.

I'm sorry for the delay in posting up, I just do want my work look better.

So, I hope you enjoy it :D

The words I used for this building are: Think, for above ground, Verticle for underground level.

The whole idea of this building is to express the idea of tranparency. This is done by the extensive use of reinforced glass material and the specially designed structure layout. In addition to these, the building it self provide a great visual fest of highly dynamic curves.

Perspectives

Pure beauty

The detail of the front platform, with finely designed texture. it is made of reinforced glasses, allow visitor to ground level and to underground level see each other while moving.

The roof layout of the bulding gives smooth and dynamic curves

The hole left on the stairs have 2 uses: Functioning as a light well, and give transparency between ground level and the stair surface. On the left hand side, is the glass platform leading to level 1 space.

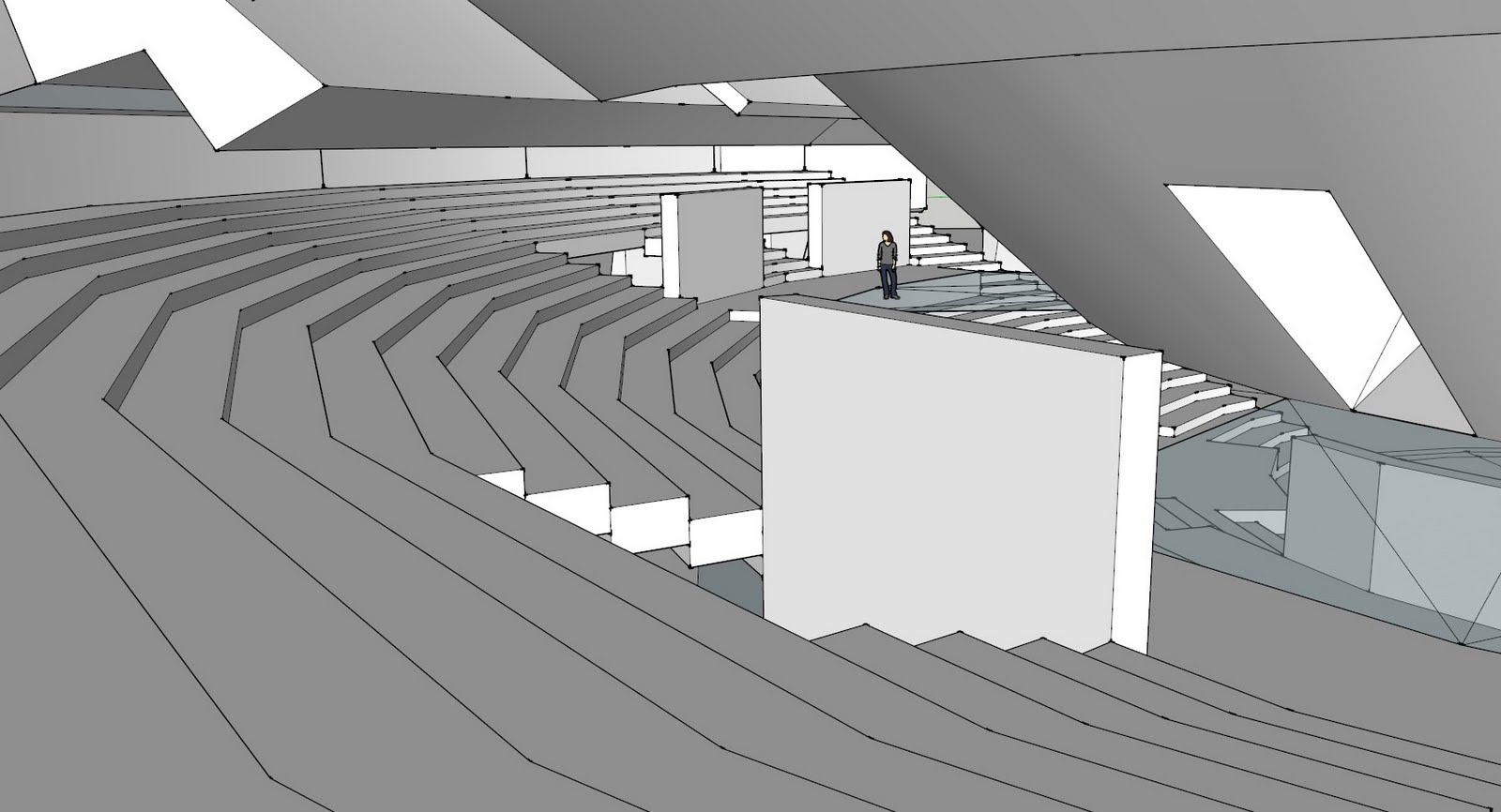

Exibition wall on stairs, with are acturally supporting columns

The open space on the back

Looking up from a certain angle

Front view

Columns positioned in beautiful curve

Nice roof sections

Entrance to stairs lead to underground level Side entrance veiw

Sections

Plans

Roof Level 1 Ground level Underground level

Stair cases

The stair case from ground level to underground level, consist of 3 conponents. each of them is just a simple stair, however when combined together, it produces a unique experience of transaction through spaces. The stair case from ground level to level 1, the stair it self is an exibotion platform, the wall like surfaces on the stairs are acturally the top of supporting columns, each face could be covered with art works. The combined stair case from ground level to underground level, with the galss window on side and the reinforced glass ground level floor, the visitor could see art works from both ground level and underground level while walking on the stairs.

These are my Works for the stair cases.

2 images for each design, 2 designs to fit in one of my building models.

Hpoe you enjoy them :D

Week1 work, 18 sections

Hello everyone, here goes my 18 sections.

The letters on each section indicates the word its design was based on.

The list of words is given below:

N1: Woman

V1: Think

A1: Huge

N2: Road

V2: Climb

A2: Virtical

In which, N stand for noun, V stand for verb, A stand for adjective. 1 stand for Mueck, 2 stand for Bansky.

Hope you enjoy them :D
